Motus

One system. Total flexibility.

C-One Motus combines the advantages of a rotating arm wrapper with the freedom of a mobile solution, bringing wrapping exactly where it’s needed. Designed as a versatile family, it adapts to different operational needs with three dedicated versions: EPT integrates directly with an electric pallet truck, using its battery to create a true 2-in-1 solution: transport and wrapping in a single machine. HPJ is fully mobile, equipped with its own battery, wheels, and steering system, allowing it to be easily moved and used anywhere in the facility. FIX is designed for stationary applications, with floor mounting or stabilizing mass options, and powered by a standard 230V supply. The EPT and HPJ versions feature the exclusive yo-yo system, ensuring perfect wrapping even around wooden pallets with fork openings. Flexible, efficient, and intelligently designed, C-One Motus delivers maximum adaptability, combining mobility and per- formance in one seamless solution.

Technical data

  Height: 2520 mm

  Width: 2340 mm

  Lenght: 2713 mm

  Weight: 300 Kg

  Power supply: 230 VAC

  Power absorption: 0,5 kW

Product specifications
  • Electronic printed circuit board for the management of the cycle
  • Frequency controller for arm speed adjustment (from 3 to 12 rpm)
  • Frequency controller for carriage speed adjustment
  • (speed going up and speed going down can be set differently)
  • Maximum wrapping height: 2000 mm
  • Maximum size of the pallet 800×1200 mm
  • Electromagnetic brake for film stretching
  • Photocell for pallet height detection
  • Safety stop at the bottom of the arm
  • Stop at 0 position
  • Power board ip54
  • 4 digit display
  • 2 access keys (including lock mode)

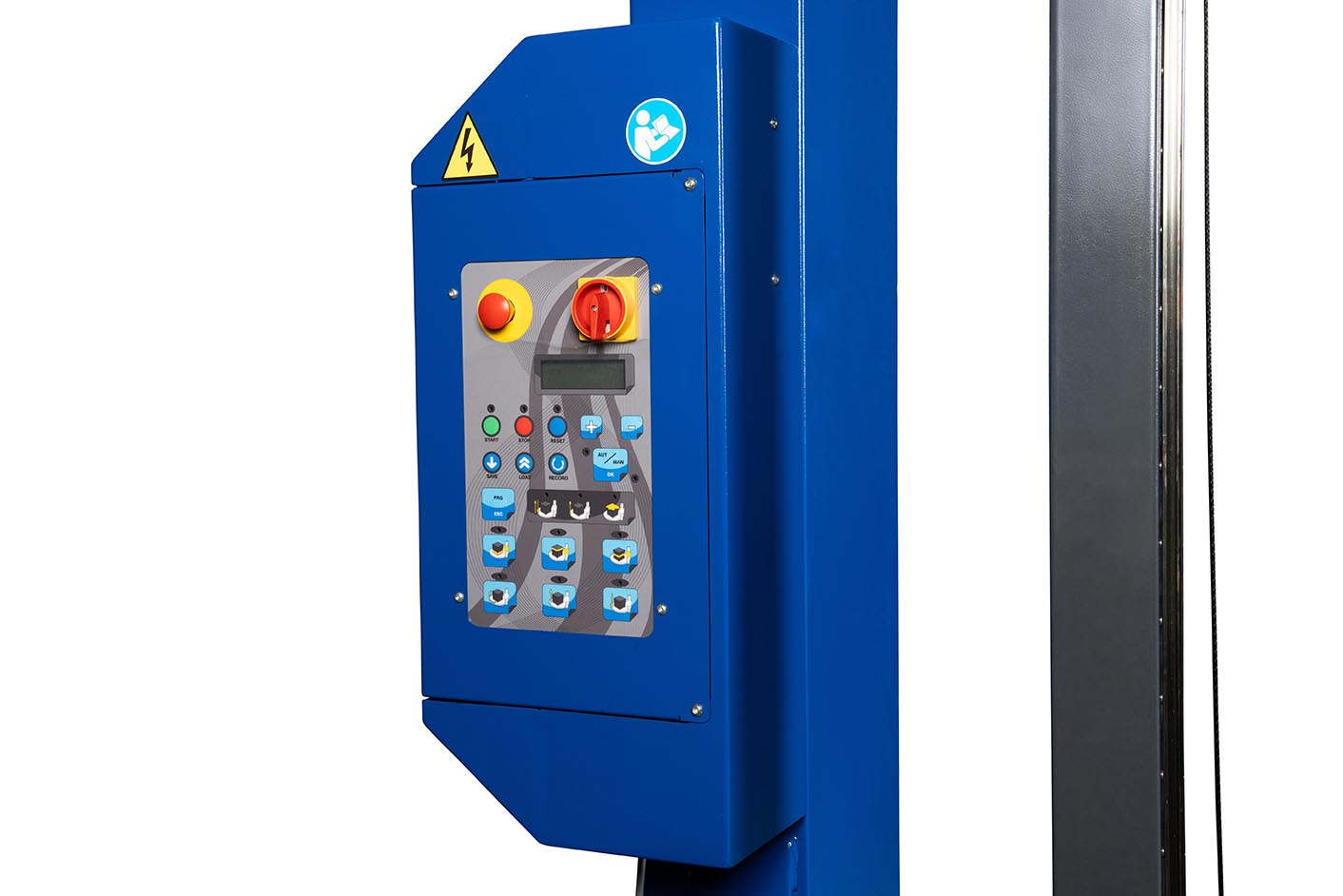

  • Adjustable parameters by the control panel: cycle selection,
  • bottom turns, top turns, rotation speed, carriage speed going up,
  • carriage speed going down, film tension.
  • Many parameters available at upper password level
  • Reinforcing operation
  • 3 working cycles: ascent/descent; topsheet; only ascent
  • 6 programs can be saved by the customer
  • Special cycle “do what I did”
  • “Yoyo” system for a better connection of the load to the pallet
  • Easy system to fix the machine to the pallet truck
  • 2 working modes: semimanual, semiautomatic.
  • Acoustic warning at the cycle start and stop
  • Autodiagnostic
  • Powder coating
  • Braked arm at the end of the cycle
  • 2 years warranty
Main options
  • 2000 mm inner diameter for 1200×1200 pallet
  • Battery kit
  • Status light
  • Photocell for black loads
